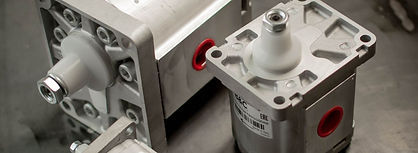

External Aluminium Gear Pumps
Constructed from premium, corrosion-resistant aluminum, B&C pumps facilitate seamless fluid transfer under extreme pressures and temperatures, which minimizes wear and downtime. The pumps are globally recognized for their precision engineering, ensuring consistent performance in critical applications such as heavy machinery, automotive systems, and industrial automation.
B&C pumps are designed to endure demanding operational cycles, providing long-term value and reduced maintenance expenses for your hydraulic solutions.
Standard Specifications
-
Aluminium body & flange construction
-
Standard european flange mount
-
1:8 Tapered shaft
-
BSP threaded ports
Optional configurations (available on request)
-
Flange material: Cast iron
-
Flange mount: SAE 2-bolt
-
Shaft:, 13 spline SAE J 498, 22.22mm parallel shaft
-
Ports: Flanged ports diamond/square, UNF threaded ports
Performance*
-
MAX speed: 2500 - 3500 Rpm
-
MAX Pressure: 200 - 300 Bar
-
Displacement: 19 - 61 cc/rev
-
Weight: 5 - 6.6 kg
*performance values mentioned above vary according to pump cc/rev. Consult our product catalogue for more detailed model specific information.
Applications
-
Mining
-
Industrial
-
Agricultural
